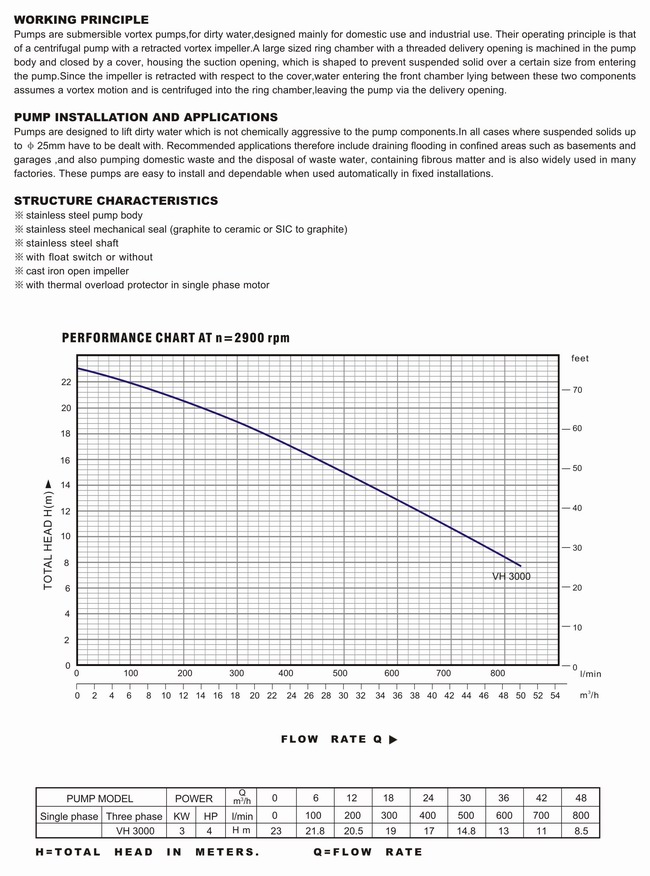

PERFORMANCE RANGE
¡ù Flow rate up to 800 l/min.(48 m3/h)
¡ù Head up to 23 m
OPERATING LIMITS
¡ù Maximum operating depth 5m below water level
¡ù Maximum fluid temperature up to 40¡æ
¡ù Maximum passage for suspended solids §æ25mm
¡ù Maximum emptying level 40mm from the bottom
|
