WORKING PRINCIPLE

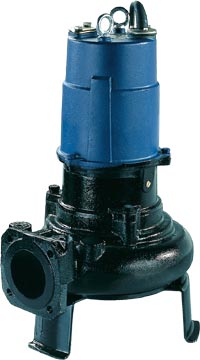

SW pumps are submersible pumps with grinding system, for dirty water, designed mainly for industrial and civil fields, are fitted with a cast iron impeller with grinder.
PUMP INSTALLATION AND APPLICATIONS
SW pumps are designed to lift dirty water, for dirty water with long fibre or firm sundries, it is easy to cut off them and avoid the impeller is blocked by the entanglement, are usedin industrial, mining, and architectural operation. SW pumps are particularly suitable for installation in kitchen, sanitation, factory, mine and family.

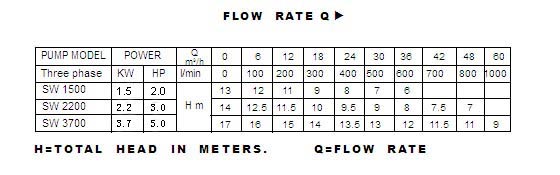

PERFORMANCE
Exceptional sturdiness, even under severe working conditions.

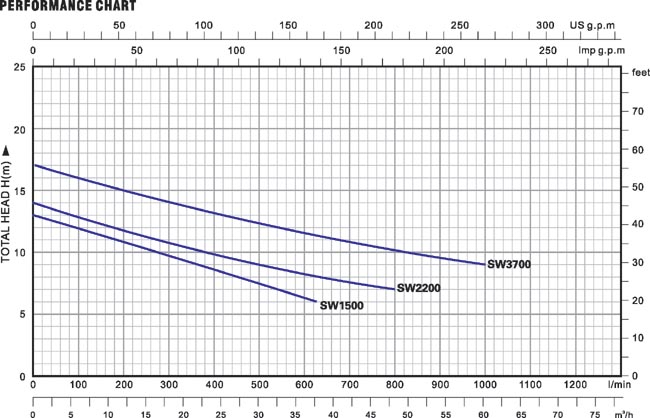

Long and stable performance curves

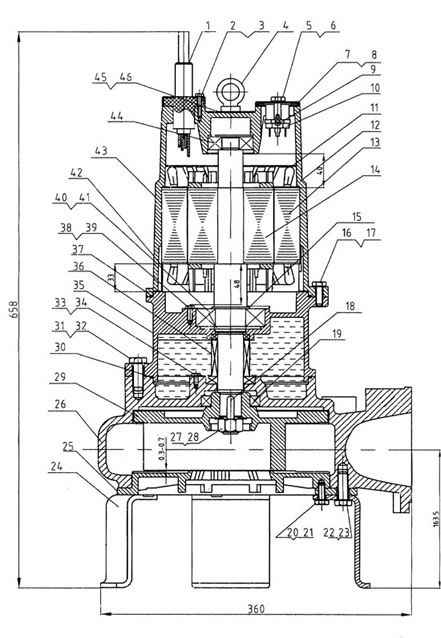

STRUCTURE CHARACTERISTICS
¡ù cast iron pump body
¡ù SIC-SIC mechanical seal
¡ù cast iron impeller with grinder
¡ù stainless steel shaft
¡ù 4-pole motor for SW2200 and SW3700
|
