working condition
¡ù sea level
elevation:below 1000 m
¡ù ph value in water:5.0-9.0
¡ù
diameter of contained particle should be less than §æ4 mm
¡ù
viscosity should be less than 0.5 pa.s
¡ù volume ratio of
mixed sandy soil should be below than 2%

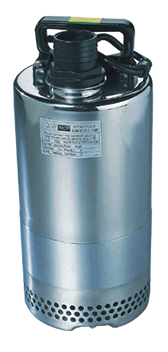

SS series
stainless steel submersible pumps can be used for garden
watering,oxygenating of water cluster box,or in supplying and
draining water for ordinary places,and characterized by
corrosion resistance,small volume,light weight and convenient
operation. it is fitted with multiple water-outlet pipes,and
self-regulated according to the requirements of its lift and
flow,and can be used at a deadlock (it is fitted with a
floating switch. so it is possible to carry out the automatic
control of start-stop action under no one's care.)single-phase
capacitor-running asynchronous motor is equipped in this pump
and installed with a built-in thermal protector,and can be
automatically cut-off in the case of overheat or
overcurrent,thus ensuring safe and reliable running under
worse circumstances.

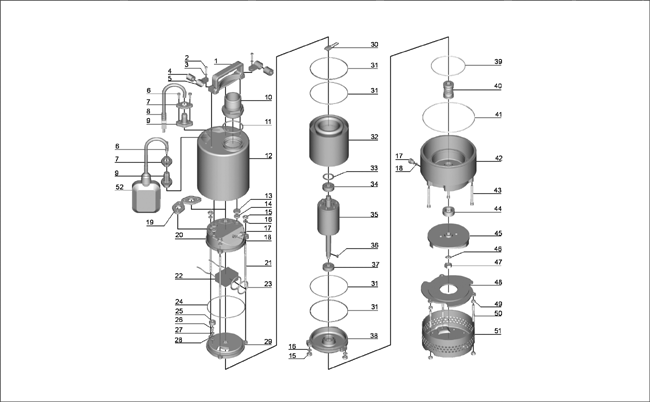

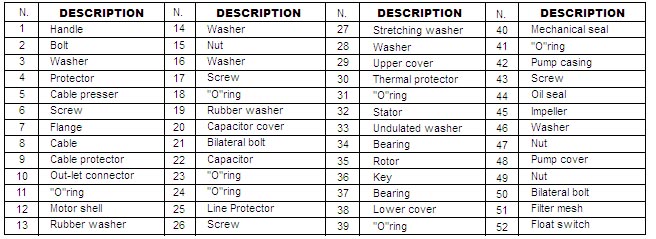

structural characteristics
¡ù stainless
steel pump body
¡ù stainless steel mechanical seal (graphite
to ceramic or SiC to graphite)
¡ù stainless steel shaft
¡ù with float switch or without
¡ù stainless steel
impeller
¡ù with thermal overload protector in single phase
motor |
