WORKING PRINCIPLE

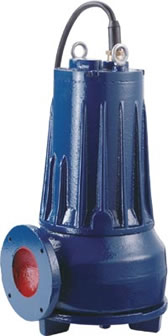

SC pumps are submersible pumps with grinding system, for dirty water, designed mainly for industrial and civil fields, are fitted with a cast iron impeller with grinder.
PUMP INSTALLATION AND APPLICATIONS
SC pumps are designed to lift dirty water, for dirty water with long fibre or firm sundries, it is easy to cut off them and avoid the impeller is blocked by the entanglement, are usedin industrial, mining, and architectural operation. SC pumps are particularly suitable for installation in kitchen, sanitation, factory, mine and family.
PERFORMANCE
Exceptional sturdiness, even under severe working conditions.

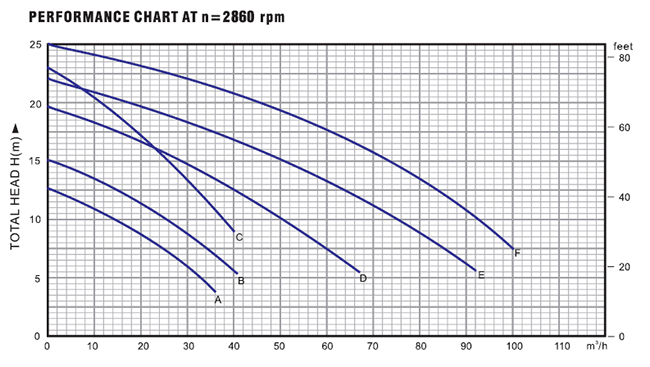

Long and stable performance curves

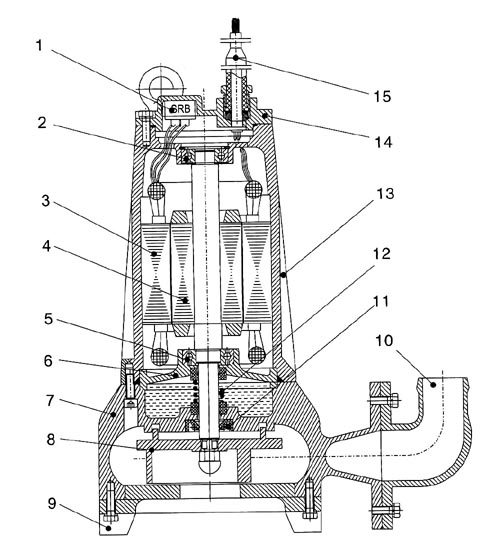

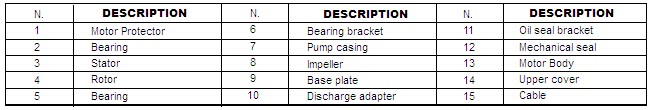

STRUCTURAL CHARACTERISTICS
¡ù cast iron pump body
¡ù graphite to ceramic mechanical seal or graphite to SIC mechanical seal
¡ù cast iron impeller with grinder
¡ù Hi-Cr plated steel shaft or stainless steel shaft
|
