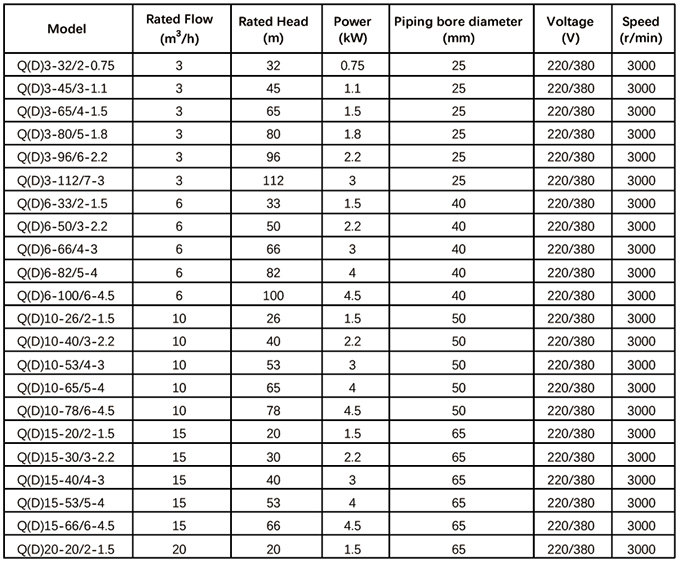

PERFORMANCE RANGE
¡ù Flow rate up to 333 l/min.(20 m3/h)
¡ù Dynamic head up to 20 m
APPLICATION LIMITS
¡ù Maximum liquid temperature +40°C
¡ù PH level from 6.5-8.5
¡ù Maximum sand contentis 0.1%
¡ù Passage of suspended solids up to 0.2mm
¡ù Power frequency is 50Hz.
¡ù Immersion depth from 0.5m-5m
MAIN APPLICATION
This series of electric pump due to the use of multistage impeller structure, high head,
wide application, widely used in farmland irrigation, garden irrigation, underground water,
water tower, urban construction, industrial and mining enterprises with water and other occasions. |
|
