working principle
POP vortex pump is a
submersible vortex pump,for dirty water,designed mainly for
domestic use.
Their operating principle is that of a
centrifugal pump with a retracted vortex impeller.A large
sized ring chamber with a threaded delivery opening is
machined in the pump body and closed at the front by a
cover,housing the suction opening,which is shaped to prevent
suspended solid over a certain sized from entering the pump.
Since the impeller is retracted with respect to the cover
,water entering the front chamber lying between these two
components assumes a vortex motion and is centrifuged into the
ring chamber,leaving the pump via the delivery opening.This
principle does not require the pumped liquid to pass directly
through the impeller,enabling the pump to handle suspended
solids without risk of clogging.
pump

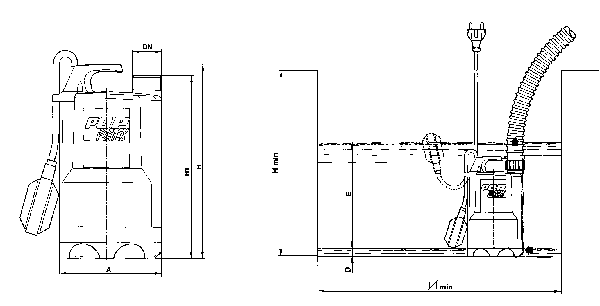

installation and applications
POP vortex pump is
suitable for lifting dirty water,not chemically aggressive to
the pump components.This pump has been designed for easy use
and it is extremely reliable even when subjected to continuous
use. Since the motor is fully cooled. It is particularly
suited for domestic use,to drain dirty water in all cases
where suspended solids up to 20 mm have to be dealt with.
Recommended applications therefore include emptying of pools
and tanks,disposal of domestic sewage,emptying of sump
pits.
performance
When designing performance levels
for POP vortex pump, special attention was given to typical
requirements for domestic usage.
¡ù performance curves
specially designed for high delivery rates at the low in
stalled power rating.
structural characteristics
¡ù delivery
body made from fibreglass reinforced
thechnopolymer,particularly resistant to mechanical
stress,knocks and corrosion,fitted
with UNI 338 11/4 gas
threaded vertical delivery opening.
¡ù suction strainer
made from fiberglass reinforced technopolymer,providing the
support base for the pump.
¡ù technopolymer hose joint with
screw fitting.
¡ù general electric Noryl gfn2v technopolymer
open impeller.
¡ù external float switch for automatic pump
operation.
¡ù stainless steel motor shaft.
¡ù double
mechanical seal carbon/alumina on the pump side and sealing
ring on the motor side(with barrier oil chamber to lubricate
and
cool the sealing surfaces in the absence of
water).
¡ù sealed induction motor, suitable for continuous
duty with built-in thermal cutout relay(motor protector).
insulation class F (provides the
motor with a considerable
overload tolerance and substantially increases the service
life of the motor itself )cooling of motor assured by
the
liquid in which the pump is immersed.
¡ù protection IP
68.
¡ù "H05 RN-F".neoprene submersible supply cable.supplied
standard with 5metres of cable and plug(10metres on
request).
¡ù construction and safety standards in compliance
with the ne 60 335-1(IEC335-1,CEI 61-50) IEC
34. |
