working principle

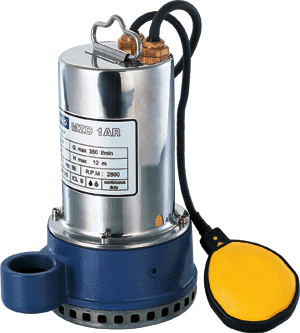

MZD pumps are
submersible drainage pumps,designed for automatic operation.
Their operating principle is that of open centrifugal pump.
The impeller, mounted on the drive shaft, of a rear disk and
blades,which are enclosed by the pump body cover. Fluid enters
the rotating blade channel via the suction strainer,which
forms the support base for the pump. Here the fluid moves
radially from the centre outwards,acquiring energy both in the
form of pressure and increased speed. When it leaves the
impeller the fluid is conveyed towards the volute. Here part
of the kinetic energy is transformed into pressure energy and
the fluid leaves the pump via the side opening machined in the
pump body.
pump installation and applications
MZD
pumps are designed to lift clear or slightly dirty water which
is not chemically aggressive to the pump components.These
pumps are particularly suited in domestic applications for
draining in basements and garages in country homes and for
emptying tanks. MZD pumps are simple to install and reliable
for automatic use in fixed installations.

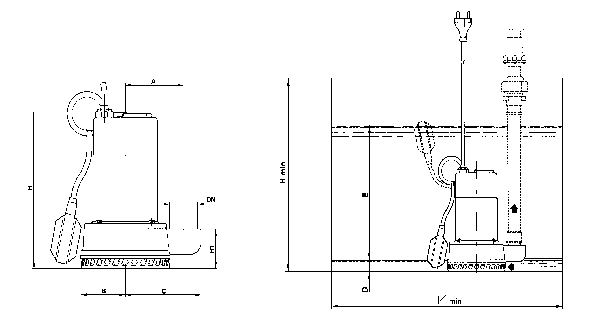

A purposely
built pit with minimum dimensions 450x450x450 mm is
recommended for fixed installations,to provide total drainage
and allow correct operation of the float switch. This system
automatically starts the pump when the fluid reaches a preset
level,stopping it once the fluid has been emptied. Installing
a suitable non retum valve on the delivery pipe prevents
reverse flow when the pump
stops.
performance
MZD pumps have
the following features:
¡ù curves expressly designed for
particular applications, with high delivery rates in relation
to modest installed power levels.
structural characteristics
¡ù cast-iron
pump body with UNI 338 11/2 gas threaded delivery
opening.
¡ù stainless steel motor sleeve.
¡ù stainless
steel suction strainer providing the support base for the
pump.
¡ù general electric Noryl gfn2v technopolymer open
vortex impeller.
¡ù stainless steel motor shaft.
¡ù
carbon/alumina mechaical seal.
¡ù sealed induction motor in
oil bath designed for continuous duty. The thermal cutout
relay (motor protector)is incorporated.Insuation class B.
¡ù
protection IP 68.
¡ù neoprene "H07 RN-F" submerged supply
cable.supplied standard with 5 metres of cable and plug
(10metres onrequest)
¡ù construction and safety standards in
compliance with EN 60 335-1(IEC 335-1, CEI61-50),
IEC34. |
