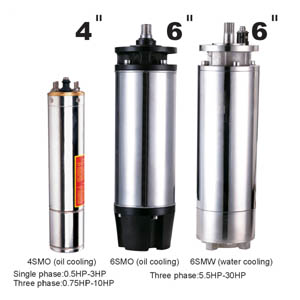

4",6" Oil,water cooling submersible Motor
Motor Characters :
*Conform to intermational standard of IEC34-ICE
*Outer shell,shaft and bottom made of stainless steel
*Brass bracker(stainless steel is available if required)
*High quality bearing and seals
*Flange connector conform to the standard of NEMA
*Pressure automatic adjusting device made of oil and water reformed butyl rubber
*Lacquer_coated wire conformed to the standard of NEMA MW37-C
*Degree of protection:IP68
*Insulation:Class B
OPERATING LIMITS:
*Max.Ambient temperature:35¡æ
*PH value in water:6.5-8.0
*Min cooling flow along the motor:8cm/sec
*Max.starts per hour:30
Max.submerged depth:350m
*Vertical or horizontal installation
|
|
| |
|
|
|
|
