3R(3") STAINLESS STEEL DEEP WELL SUBMERSIBLE PUMPS
DESCRIPTION:
Electric submersible pumps are with radial or semi-axial impellers. The impellers and the diffusers are in plastic material (noryl), whereas the bearings ceramic/rubber lubricated by the water circulation. Check valve is incorporated in the delivery body with threaded outlet. The coupling pump-motor is according to NEMA regulations.
|
|
| |

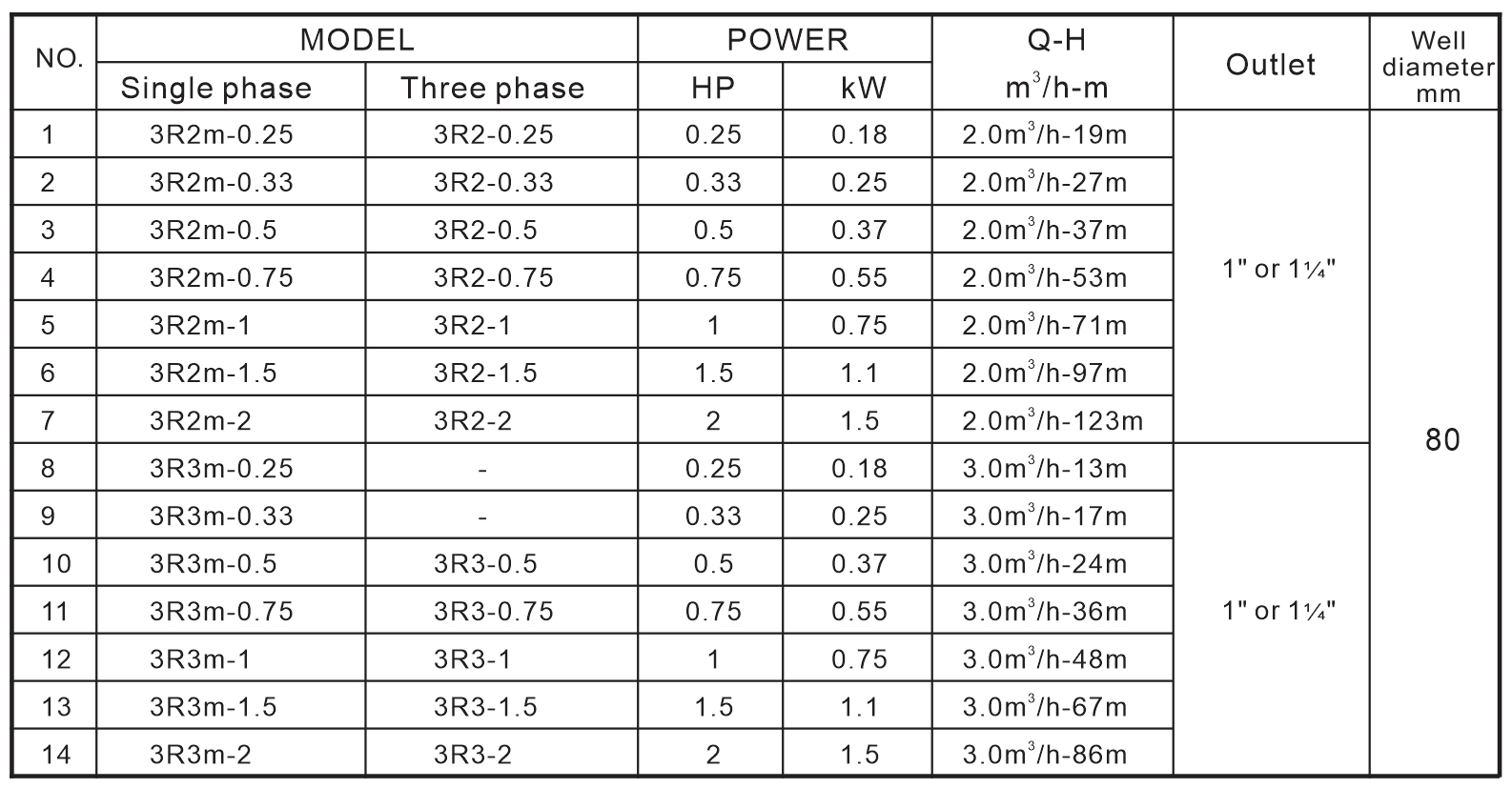

3R(3")
|
|
|
Pump Model |
Power |
Rated capacity |
Rated head |
Outlet |
SINGLE PHASE |
KW
|
HP |
m3/h |
m |
inch |
3R1m-0.3 |
0.25 |
0.3 |
1 |
25 |
1" |
3R1m-0.5 |
0.37 |
0.5 |
1 |
40 |
3R1m-0.75 |
0.55 |
0.75 |
1 |
55 |
3R1m-1 |
0.75 |
1 |
1 |
80 |
3R1m-1.5 |
1.1 |
1.5 |
1 |
115 |
|
