SELF-PRIMING "JET"PUMPS (FOR DEEP WELL)

STRUCTURAL CHARACTERISTICS ※ cast iron body ※ cast iron jet body ※ stainless steel mechanicel seal(graphite to SIC) ※ stainless steel shatf ※ protection IP44 ※ two brass or nylon impeller centrifugal radial type ※ with thermal overload protector in single phase motor ※ NSK bearing or local bearing

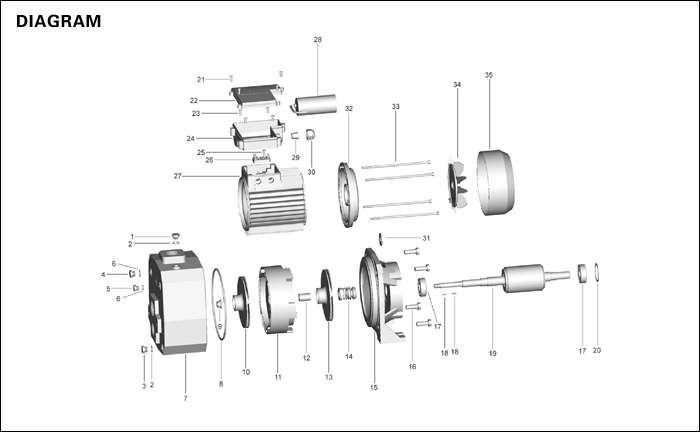

	MQ505A-DP

N.

DESCRIPTION

N.

DESCRIPTION

N.

DESCRIPTION

1
Charge plug
13
Impeller
25
Screw

2
"O" ring
14
Mechanical seal
26
Terminal board

3
Discharge plug
15
Pump support
27
Casing with wound stator

4
Switch plug
16
Bolt
28
Capacitor

5
Gauge plug
17
Bearing
29
Failead

6
"O" ring
18
Key
30
Nut

7
Pump casing
19
Rotor
31
Drops guard

8
"O" ring
20
Split ring
32
Driving cap

9
Nut
21
Screw
33
Tie-rod

10
Impeller
22
Terminal cover
34
Fan

11
Diffuser
23
Screw
35
Fan cover

12
Shaft sleeve
24
Terminal box

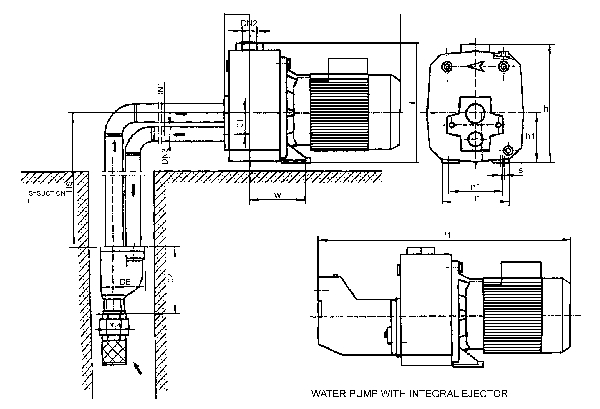

PUMP MODEL

DNP

DN1

DN2

DN3

DN4

DE

DINMENSIONS mm

O O1 O2 f f1 h h1 l n n1 w s

MQ505A-DP 4" 1 1/4" 1" 1" 1" 97 55 55 142 384 455 255 221 255 198 145 120 10
