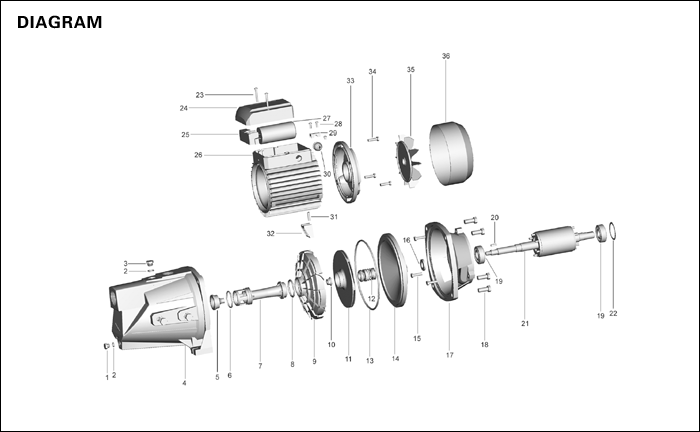

N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION
1	Discharge pulg	13	"O" ring	25	Terminal board
2	"O" ring	14	Pump casing cover	26	Casing with wound stator
3	Charge plug	15	Bolt	27	Capacitor
4	Pump casing	16	Drops guard	28	Screw
5	Nozzle	17	Pump support	29	Cable presser
6	"O" ring	18	Bolt	30	Fairlead
7	Venturi pipe	19	Bearing	31	Stand pin
8	"O" ring	20	Key	32	Stand
9	Diffuser	21	Rotor	33	Driving cap
10	Nut	22	Split ring	34	Bolt
11	Impeller	23	Bolt	35	Fan
12	Mechanical seal	24	Terminal cover	36	Fan cover

PUMPS INSTALLATION AND APPLICATIONS These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components.They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-sized surge tanks,watering gardens,etc.These pumps should be installed in a covered area,protected against the weather.N.B.It is always advisable to install a foot valve or a non-retum valve on the suction opening. PERFORMANCE The wide range of pumps in the MJSW series satisfies the most varied requirements with features such as : ※ high heads with respect to power requirements; ※ flat operating and power absorption curves,giving moderate curve variations with respect to large variations in delivery demand; ※ high tolerance of the presence of entrained air in the fluid to be pumped; ※ suction capacity up to 9 meters. STRUCTURAL CHARACTERISTICS ※ cast iron pump body ※ stainless steel pump body cover ※ stainless steel mechanical seal(graphite to SiC) ※ brass impeller with centrifugal radial flow type ※ stainless steel shaft ※ protection IP44 ※ with thermal overload protector in single phase motor ※ NSK bearing or local bearing WARRANTY:1 YEAR(according to our general sales conditions) FLOW RATE Q PUMP MODEL POWER Q m3/h 0 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.6 4.2 4.8 6.0 7.2 8.4 9.6 Single phase Three phase KW HP l/min  0 10 15 20 25 30 35 40 45 50 60 70 80 100 120 140 160 MJSW/3CH MJS/3CH 1.1 1.5 H M 64 60 55 51 48 45 42.5 40 39 37 34 31           MJSW/3BH MJS/3BH 1.5 2 76 70 67 64 61 58 55.5 53 50 48 45 41 39         MJSW/3CM MJS/3CM 1.1 1.5 52 50 48 45 44 42 40 38 38 35 32 31 28 24 20     MJSW/3BM MJS/3BM 1.5 2 60 58 56 54 52 51 49 47 46 45 42 40 37 33 30     MJSW/3CL MJS/3CL 1.1 1.5 42 40 39 38 37 36 35 34 33 32 30 28 26 23 20 17 15 MJSW/3BL MJS/3BL 1.5 2 51 48 46 45 44 43 42 41 40 39 37 35 33 30 27 24 22 H=TOTAL HEAD IN METERS. Q=FLOW RATE
