      Self-Priming_Jet_Pump

SELF-PRIMING "JET" PUMPS
PERFORMANCE RANGE
¡ù flow rate up to 80 I/min.(4.8 m3/h)
¡ù head up to 72 m

OPERATING LIMITS
¡ù suction lift up to 9 m
¡ù fluid temperature up to 40¡æ
¡ù maximum ambient temperature 40¡æ

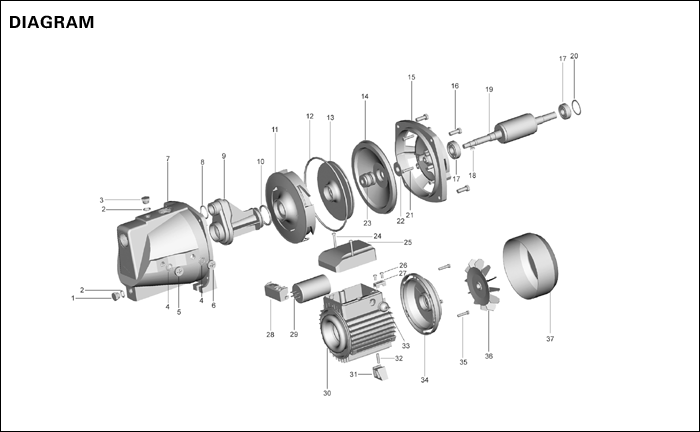

MJSW/10M


N.
DESCRIPTION
N.
DESCRIPTION
N.
DESCRIPTION
N.
DESCRIPTION
1
Discharge pulg
13
 Impeller
25
Terminal cover  37 Fan cover
2
 "O" ring
14
Pump casing cover
26
Screw
3
 Charge plug
15
Pump support
27
Cable presser
4
"O" ring
16
 Bolt
28
Terminal board
5
Gauge plug
17
 Bearing
29
Capacitor
6
Switch plug
18
 Key
30
Casing with wound stator
7
Pump casing
19
Rotor
31
Stand
8
"O" ring
20
Split ring
32
Stand pin
9
Venturi pipe
21
Bolt
33
Fairlead
10
"O" ring
22
Drops guard
34
Driving cap
11
Diffuser
23
Mechanical seal
35
Bolt
12
"O" ring
24
Bolt
36
Fan

PUMPS INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components.They are extremely reliable,economical and simple to use,being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-sized surge tanks,watering gardens,etc.These pumps should be installed in a covered area,protected against the weather.N.B.It is always advisable to install a foot valve or a non-retum valve on the suction opening.

PERFORMANCE
The wide range of pumps in the MJSW series satisfies the most varied requirements with features such as :
¡ù high heads with respect to power requirements;
¡ù flat operating and power absorption curves,giving moderate curve variations with respect to large variations in delivery demand;
¡ù high tolerance of the presence of entrained air in the fluid to be pumped;
¡ù suction capacity up to 9 meters.

STRUCTURAL CHARACTERISTICS
¡ù cast iron pump body
¡ù stainless steel pump body cover
¡ù stainless steel mechanical seal(graphite to ceramic or graphite to SiC)
¡ù brass impeller with centrifugal radial flow type
¡ù stainless steel shaft(Hi-Cr plated 45# steel up to 0.75kw)
¡ù protection IP44
¡ù with thermal overload protector in single phase motor
¡ù NSK bearing or local bearing

WARRANTY:1 YEAR(according to our general sales conditions)

FLOW RATE Q

PUMP MODEL
POWER
Q
m3/h
0
0.3
0.6
0.9
1.2
1.5
1.8
2.4
2.7
3.0
3.6
4.2
4.8
Single phase
Three phase
KW
HP
l/min
 0 5 10 15 20 25 30 40 45 50 60 70 80
MJSW/10M MJS/10M 0.75 1
H
M
46 44 41 39 37 35 32 30 28 25 22 21 19
MJSW/15M MJS/15M 1.1 1.5 55 53 50 48 47 44 41 39 36 34 31 29 27
MJSW/10H MJS/10H 0.75 1 56 50 45 41 37 34 31 26 24 22
MJSW/15H MJS/15H 1.1 1.5 72 67 61 55.5 51 47 43.5 37 34.5 32
H=TOTAL HEAD IN METERS. Q=FLOW RATE
