PUMP INSTALLATION AND
APPLICATIONS
These pumps are suitable for pumping
clean water and fluids which are not chemically aggressive to
the pump components. They are extremely
reliable,light,economical and simple to use,finding many uses
in domestic applications, in particular the automatic
distribution of water from small and medium-sized surge
tanks,watering gardens,etc.These pumps should be installed in
a covered area,protected against the weather.
n.b.it is
always advisable to install a foot valve or a non-return valve
on the suction opening.

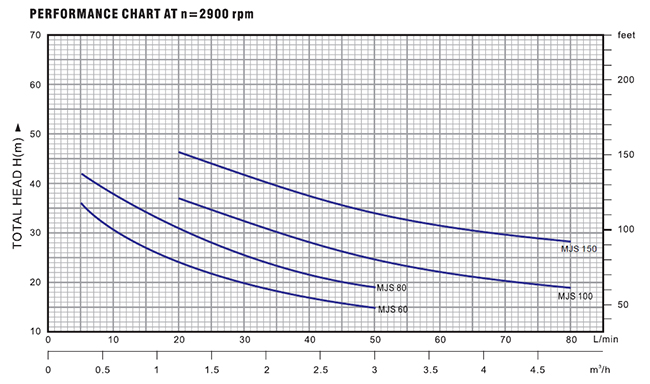

PERFORMANCE
The wide range of pumps in
the MJS series satisfies the most various operating
requirements with features such as:
¡ù high heads with
respect to power requirements;
¡ù flat operating and power
absorption curves,giving moderate curve variations with
respect to large variations in delivery demand;
¡ù very low
noise levels within the field of application;
¡ù high
tolerance of the presence of entrained air in the fluid to be
pumped;
¡ù suction capacity up to 9 meters.

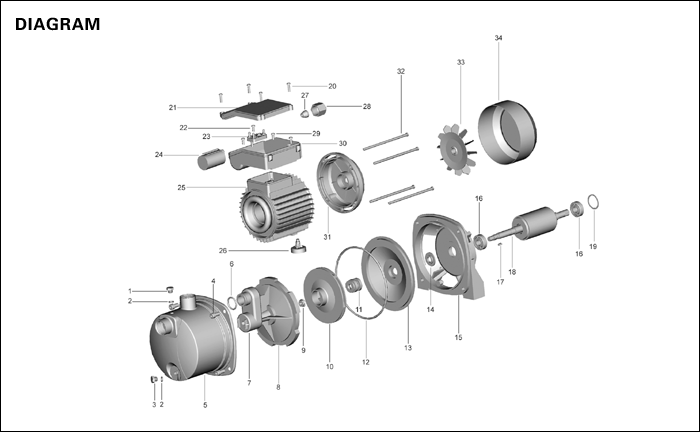

STRUCTURAL CHARACTERISTICS
¡ù stainless
steel pump body
¡ù stainless steel pump body cover
¡ù
stainless steel mechanical seal (graphite to ceramic)
¡ù
brass impeller with centrifugal radial flow type
¡ù Hi-Cr
plated 45# steel shaft
¡ù protection IP44
¡ù with thermal
overload protector in single phase motor
¡ù NSK bearing or
local bearing
WARRANTY:1 YEAR(according to our general sales
conditions)
FLOW RATE Q
PUMP MODEL |
POWER |
Q
m3/h |
0 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.0 |
3.6 |
4.2 |
4.8 |
Single phase |
Three phase |
KW |
HP |
l/min |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
50 |
60 |
70 |
80 |
| MJS 60 |
MJ 60 |
0.50 |
0.70 |
H
M
|
41 |
36 |
31 |
27 |
24 |
22 |
20 |
19 |
17 |
15 |
|
|
|
| MJS 80 |
MJ 80 |
0.60 |
0.80 |
47 |
42 |
38 |
34 |
31 |
29 |
26 |
24 |
22 |
19 |
|
|
|
| MJS 100 |
MJ 100 |
0.75 |
1 |
46 |
44 |
41 |
39 |
37 |
35 |
32 |
30 |
28 |
25 |
22 |
21 |
19 |
| MJS 150 |
MJ 150 |
1.1 |
1.5 |
55 |
53 |
50 |
48 |
47 |
44 |
41 |
39 |
36 |
34 |
31 |
29 |
27 |
H=TOTAL
HEAD IN METERS. Q=FLOW RATE
|
