PUMP INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water
and fluids which are not chemically aggressive to the pump
components. They are extremely reliable,economical and simple
to use,being particularly suitable for domestic applications
such as the automatic distribution of water from small and
medium-sized surge tanks, watering gardens,etc .These pumps
should be installed in a covered area,protected against the
weather. N.B.it is always advisable to install a foot valve or
a non-return valve on the suction opening.
PERFORMANCE
The wide range of pumps in
the MJ series satisfies the most varied requirements with
features such as:
¡ù high heads with respect to power
requirements;
¡ù flat operating and power absorption
curves,giving moderate curve variations with respect to large
variations in delivery demand; .
¡ù high tolerance of the
presence of entrained air in the fluid to be pumped;
¡ù
suction capacity up to 9 meters.

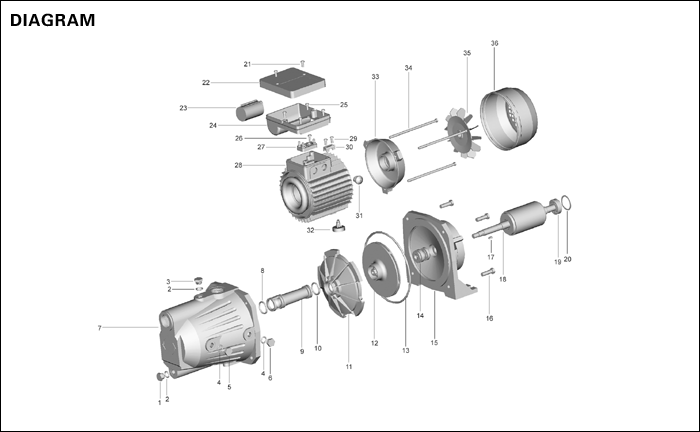

STRUCTURAL CHARACTERISTICS
¡ù cast iron
pump body
¡ù stainless steel mechanical seal (graphite to
ceramic)
¡ù brass impeller with centrifugal radial flow
type
¡ù Hi-Cr plated 45# steel shaft
¡ù protection
IP44
¡ù with thermal overload protector in single phase
motor
¡ù NSK bearing or local bearing
WARRANTY:1 YEAR(according to our general sales
conditions)
FLOW RATE Q
PUMP MODEL |
POWER |
Q
m3/h |
0 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.0 |
3.6 |
Single phase |
Three phase |
KW |
HP |
l/min |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
50 |
60 |
| MJ 60L |
M 60L |
0.4 |
0.5 |
H
M
|
38 |
37 |
26 |
20 |
16 |
12 |
8 |
7.5 |
|
|
|
| MJ 80L |
M 80L |
0.6 |
0.8 |
42 |
41 |
32 |
26 |
22 |
18 |
14 |
10.5 |
8 |
|
|
| MJ 100L |
M 100L |
0.75 |
1 |
45 |
44 |
38 |
31.5 |
28.5 |
24 |
21 |
18 |
15.5 |
11.5 |
9 |
H=TOTAL
HEAD IN METERS. Q=FLOW RATE
|
