PUMPS INSTALLATION AND
APPLICATIONS
These pumps are suitable for handling
clean water not containing abrasive particles and fluids which
are not chemically aggressive to the pump
components.Reliable,economical and simple to use,they are
suitable for domestic applications and the automatic
distribution of water from surge tanks,watering gardens and
for boosting insufficient mains water pressure.These pumps
should be installed in a covered area,protected against the
weather.
PERFORMANCE
¡ù high heads with respect
to power requirements.
¡ù stable operating curves,with small
variations in delivery rates with respect to large variations
in the pressure demand.
¡ù high tolerance of the presence of
entrained air in the liquid being pumped.

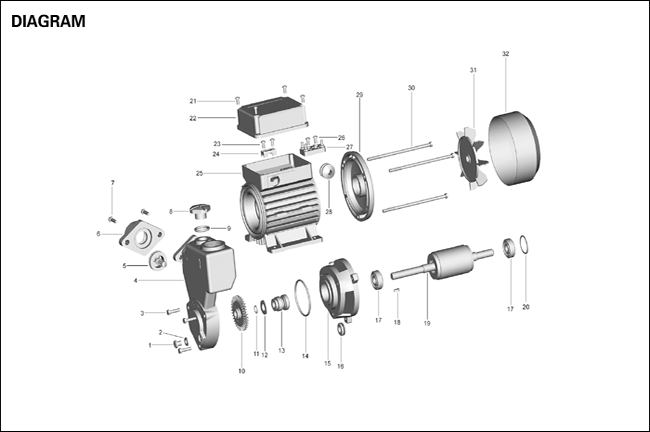

STRUCTURAL CHARACTERISTICS
¡ù cast iron
pump body
¡ù stainless steel mechanical seal(graphite to
ceramic)
¡ù brass impeller with radial peripheral
blades
¡ù protection IP44
¡ù Hi-Cr plated 45# steel
shaft
¡ù with thermal overload protector in single phase
motor
¡ù NSK bearing or local bearing
WARRANTY:1 YEAR(according to our general sales
conditions)
FLOW RATE Q
PUMP MODEL |
POWER |
Q
m3/h |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
3.0 |
Single phase |
Three phase |
KW |
HP |
l/min |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
50 |
MKS 60-1
|
KS 60-1 |
0.37 |
0.50 |
H
M |
40 |
38 |
33.5 |
29 |
24 |
19.5 |
15 |
10 |
5 |
|
MKS 70-1 |
KS 70-1 |
0.60 |
0.80 |
65 |
62 |
57 |
52 |
47 |
42 |
37 |
32 |
27 |
18 |
MKS 80-1 |
KS 80-1 |
0.75 |
1 |
70 |
66 |
61 |
56 |
51 |
46 |
41 |
36 |
31 |
22 |
H=TOTAL
HEAD IN METERS. Q=FLOW RATE
 |
