Horizontal multistage
Stainless steel centrifugal pump

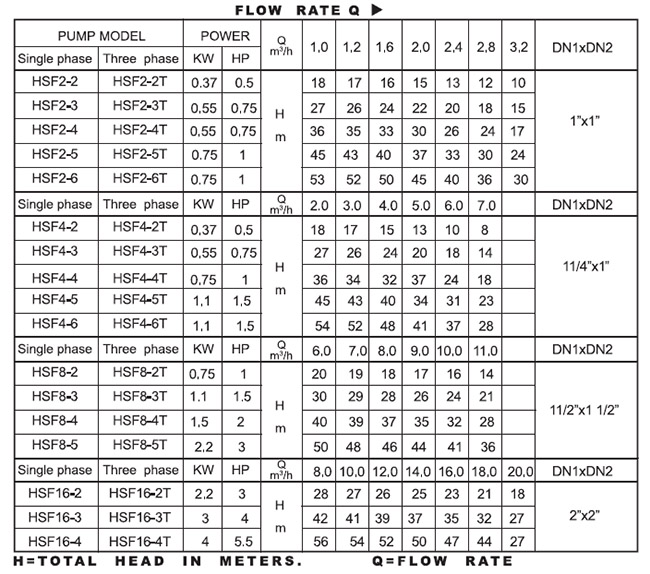

PERFORMANCE RANGE
¡ù Flow rate up to 333l/min. (20 m3/h)
¡ù Head up to 56m
1.Applications
HSF horizontal multistage stainless steel centrifugal pumps are designed for the following applications:
Mainly applicable for conveying of industrial liquid and pressure for demineralized water,soft water purified solution,light oil,etc.
Cooling water systems
Domestic water supply
Industrial cleaning
Aquiculture
Pesticide dosing systems
Environmental protection
Boosting & circulation systems
2.Technical Date
a. Ambient Temperature
Maximum: +40¡æ
b. Liquid Temperature
Standard design: -15¡æ to +90¡æ
For hot water design: -15¡æ to +120¡æ
c. Max operating pressure:10 bar
Max suction pressure is limited by max operating pressure
Axial inlet and radial outlet
d. Electric Motor standard be supplied as:
50Hz,single phase 220v or three phase 380v, aluminum casing,IP54,class F
60Hz,single phase 110v or three phase 220v, aluminum casing,IP54,class F.
e. Pump’s material can be supplied in 304 or 316 stainless steel.

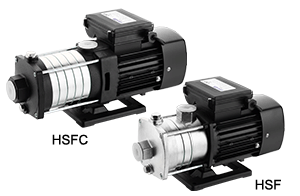

3. Stainless steel pump head and support :HSF
Cast iron pump head and support :HSFC

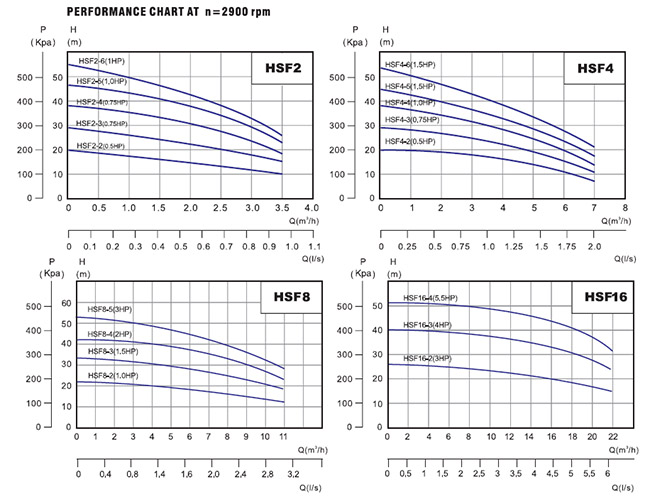

The performance curve of HSF and HSFC is the same
|
