PUMPS INSTALLATION AND APPLICATIONS
These pumps are suitable to handling clean water which are not chemically aggressive to the pump components.
They are extremely reliable, simple to use , quite and virtually maintence-free, finding many uses in flow irrigation systems in gardening , agriculture and industrial fittings.

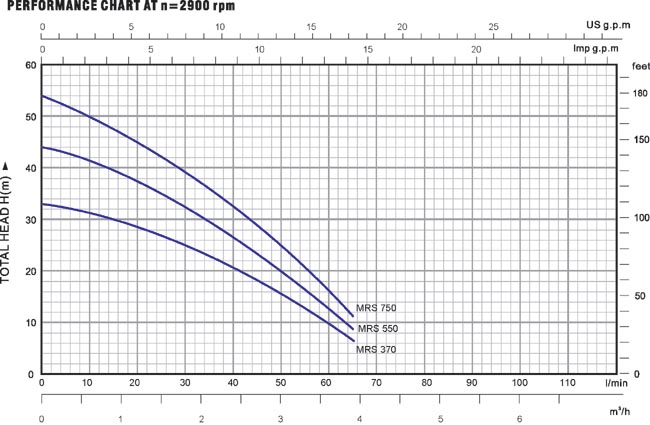

PERFORMANCE
¡ù particularly ample and stable characteristic curves (high ratio between minimum and maximum head values);
¡ù outputs having high absolute values and tendencially flat curves;
¡ù flat absorption curves at high delivery rates,preventing motor overloading even during prolonged use;
¡ù good suction capacities both at low and high delivery rates.
STRUCTURE CHARACTERISTICS
¡ù stainless steel pump body
¡ù cast iron pump inlet
¡ù cast iron motor support
¡ù stainless steel mechanical seal (graphite to ceramic)
¡ù stainless steel impeller with centrifugal radial flow type
¡ù 45# steel shaft
¡ù protection IP44
¡ù with thermal overload protector
¡ù NSK bearing or local bearing
WARRANTY:1YEAR(according to our general sales conditions)
|
