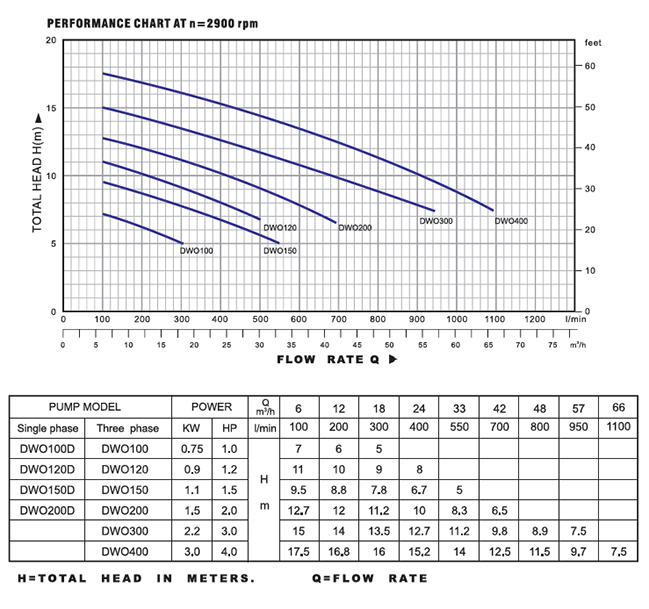

PERFORMANCE RANGE
※ Flow rate up to 1100 l/min. (66.0 m³/h)
※ Head up to 17.5m

OPERATION LIMITS
※ Suction lift up to 8m
※ Fluid temperature from -5℃ to +105℃
※ Maximum ambient temperature 40℃
※ Maximum passage for suspended solids Φ19mm

PUMPS INSTALLATION AND APPLICATIONS

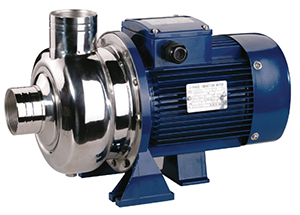

DWO open impeller centrifugal pumps with the hydraulic element manufactured from stainless steel Aisi 304, suitable for suspended solids handling food process e.g. washing vegetables, meats, and fish, industrial washing machines that contain solids e.g. bottles, jars, glasses & crates. Process applications such as paint plant & general dirty liquid handling.
