Multi-Stage Pump

END SUCTION CENTRIFUGAL PUMPS

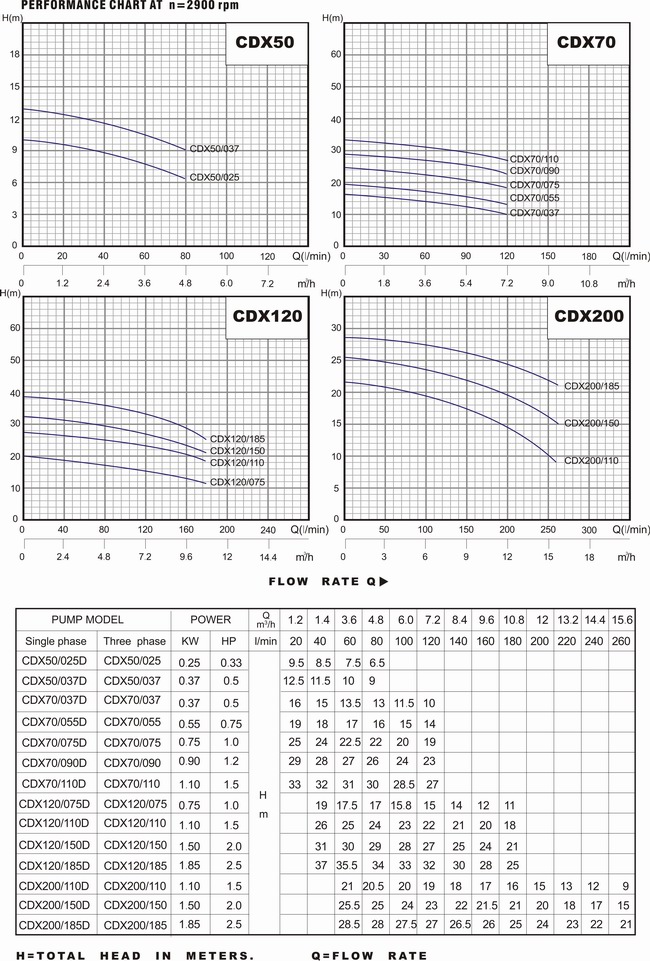

PERFORMANCE RANGE
※ Flow rate up to 260 l/min. (15.6 m³/h)
※ Head up to 37m

OPERATION LIMITS
※ Suction lift up to 8m
※ Fluid temperature from -5℃ to +105℃
※ Maximum ambient temperature 40℃

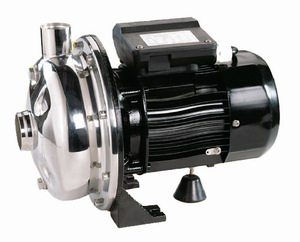

CDX

PUMPS INSTALLATION AND APPLICATIONS
CDX single impeller end suction centrifugal pumps with hydraulic components constructed in stainless steel AISI304, suitable for pressure boosting, water supply, water treatment and irrigation. Air conditioning systems and general water pumping including moderately aggressive liquids.They are designed for dependable performance, and rugged continuous duty.

PERFORMANCE
※ Ample and stable characteristic curves;
※ Performance characterized by high absolute values over the majority of the curve;
※ Flat absorption curves at high delivery rates, preventing motor overloading even during prolonged use;
※ Good suction capacities both at low and high delivery rates.

STRUCTURE CHARACTERISTICS
※ 304 stainless steel pump body
※ 304 stainless steel pump body cover
※ 304 stainless steel closed type impeller
※ 304 stainless steel shaft
※ Stainless steel mechanical seal (EPDM/Carbon/SIC))
※ Aluminum bracket and motor casing
※ Protection IP54, Insulation class B
※ With thermal overload protector in single phase motor
※ Lock bearing
