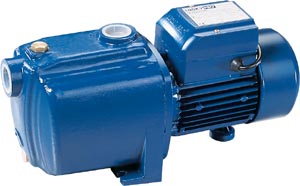

PUMPS INSTALLATION AND APPLICATIONS
These pumps are suitable to pumping clean water and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, simple to use , quite and virtually maintenance-free, finding many uses in domestic applications, in particular the automatic distribution of water from small and medium-sized surge tanks, waterig gardens, etc.
The form of construction used for this series, with the various stages completely enclosed in a sturdy cast-iron body and high performance allow these pumps to find reliable applications in equipping industrial machinery or complete units (washing systems, boilers, etc.)
These pumps should be installed in a covered area, protected against the weather.

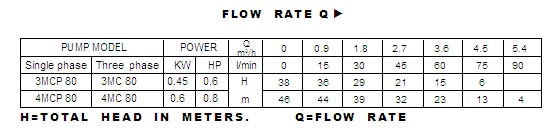

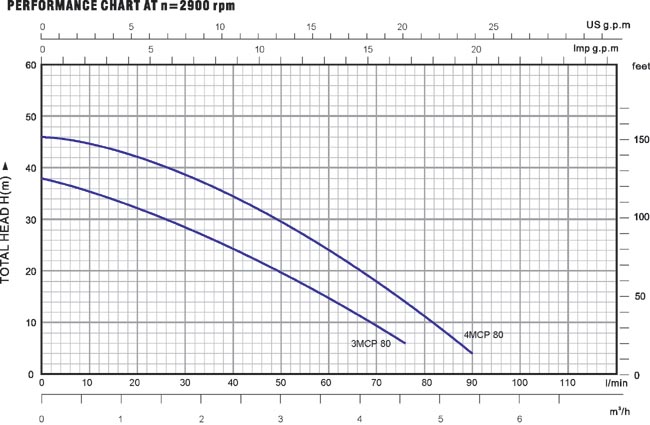

PERFORMANCE
¡ù Particularly stable characteristic curves (very high ratio between maximum and minimum head values)
¡ù Very low noise levels at any capacity
¡ù Low installed power level compared with guaranteed head values
¡ù Good suction capacities

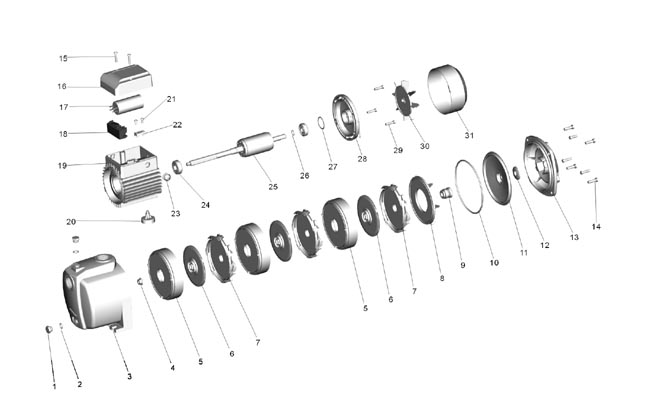

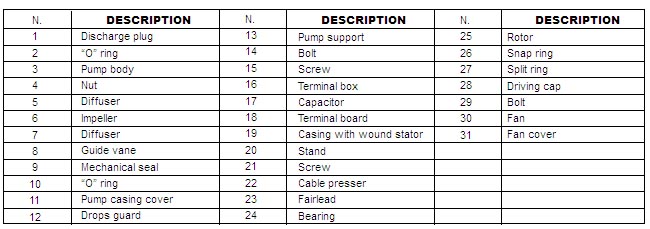

STRUCTURE CHARACTERISTICS
¡ù cast iron pump body
¡ù stainless steel pump body cover
¡ù stainless steel mechanical seal (graphite to ceramic)
¡ù noryl impeller with centrifugal radial flow type
¡ù 45# steel shaft
¡ù protection IP44
¡ù with thermal overload protector
¡ù NSK bearing or local bearing
WARRANTY:1 YEAR(according to our general sales condition) |
