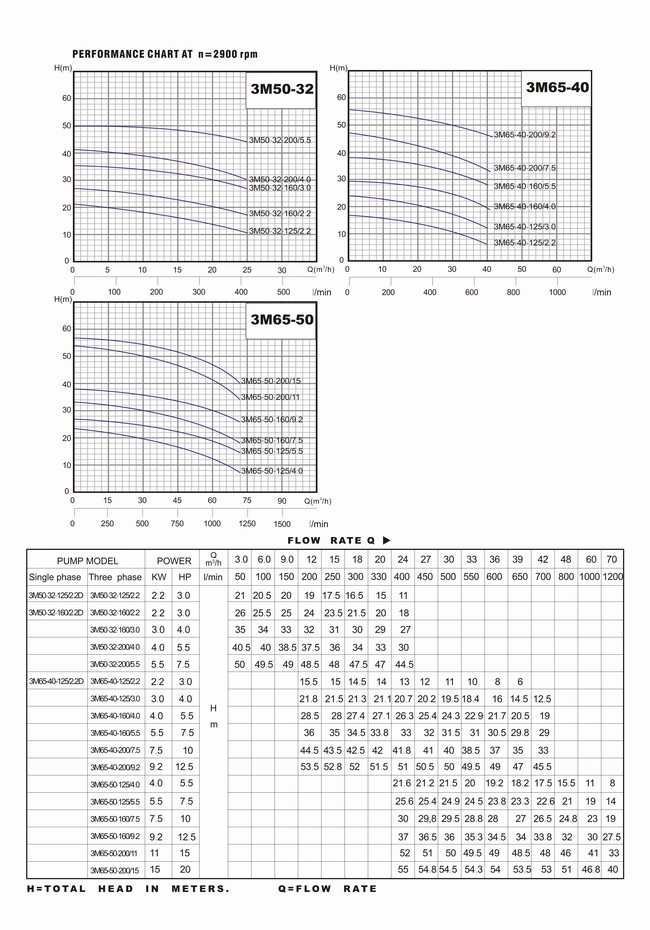

PERFORMANCE
¡ù Ample and stable characteristic curves;
¡ù Performance characterized by high absolute values over the majority of the curve;
¡ù Flat absorption curves at high delivery rates, preventing motor overloading even during prolonged use;
¡ù Good suction capacities both at low and high delivery rates.

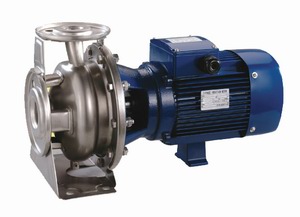

STRUCTURE CHARACTERISTICS
¡ù 304 stainless steel pump body
¡ù 304 stainless steel pump body cover
¡ù 304 stainless steel impeller
¡ù 304 stainless steel shaft
¡ù Stainless steel mechanical seal (EPDM/Carbon/SIC))
¡ù Aluminum motor casing(cast iron motor casing up 11kw)
¡ù Protection IP54 for single phase, IP55 for three phase. Insulation class F
¡ù With thermal overload protector in single phase motor
¡ù NSK bearing
|
