      Garden Pump

GRADEN JET PUMPS

PERFORMANCE RANGE
¡ù flow rate up to 65 I/min.(3.9 m3/h)
¡ù head up to 46 m

OPERATING LIMITS
¡ù suction lift up to 9 m
¡ù fluid temperature up to 35¡æ
¡ù maximum ambient temperature 40¡æ
PGJC 1100

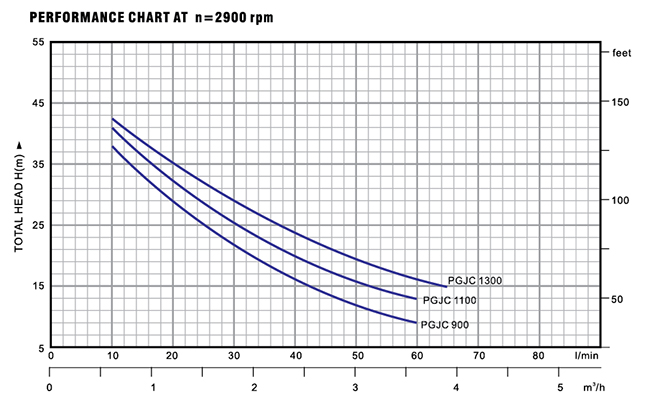

FLOW RATE Q
MODALE
INPUT POWER
(W)
INLET/OUTLET
MAX.FLOW
(l/min)
MAX.HEAD
(m)
MAX.SUCK
(m)
PGJC 900 900 1"x 1" 60 42 9
PGJC 1100 1100 1"x 1" 60 45 9
PGJC 1300 1300 1"x 1" 65 46 9
H=TOTAL HEAD IN METERS. Q=FLOW RATE
