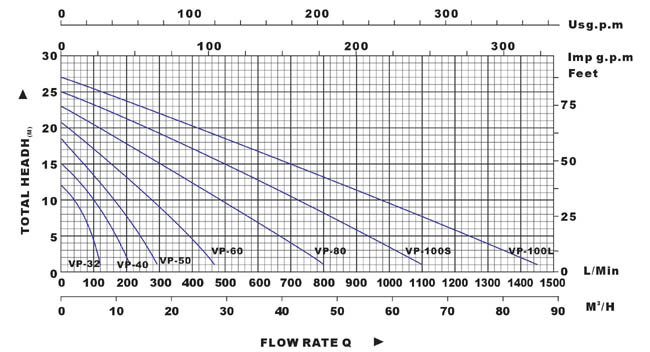

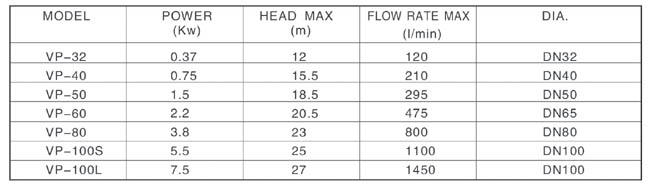

PERFORMANCE RANGE
¡ù flow rate up to 1450 l/min
¡ù head up to 27m
OPERATING LIMITS
¡ù fluid temperature: 2¡æ~~+110¡æ
¡ù maximum ambient temperature 40¡æ
¡ù maximum working pressure 1Mpa

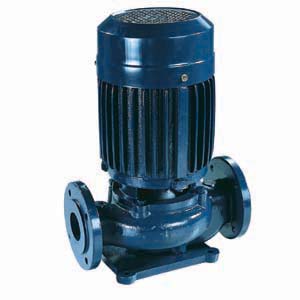

STRUCTURAL CHARACTERISTICS
¡ù with thermal overload protector in 1-phase motor
¡ù cast iron pump body ( stainless steel available on request)
¡ù cast iron impeller (brass available on request)
¡ù protection IP44 or IP54
¡ù insulation class B or F
¡ù 45# steel shaft (AISI420 available on request)
¡ù stainless steel mechanical seal (graphite to ceramic)
|
