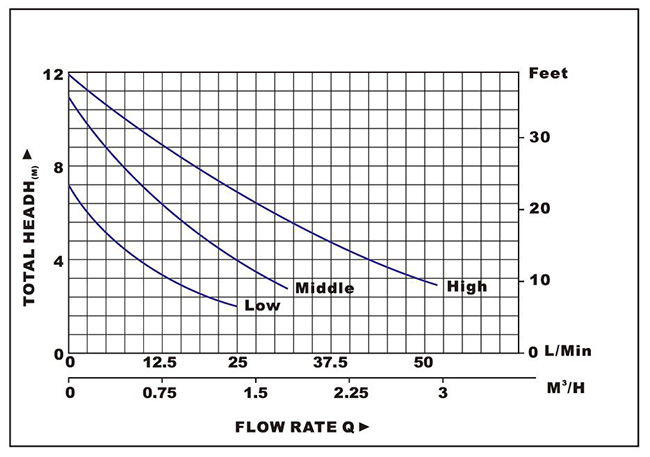

PERFORMANCE RANGE
※ flow rate up to 55 l/min
※ head up to 12 m

OPERATING LIMITS
※ fluid temperature: 2℃~~+110℃
※ maximum ambient temperature 40℃
※ maximum working pressure 1Mpa

STRUCTURAL CHARACTERISTICS
※ Non-overloading 1-phase motor
※ manual 3-speed control
※ cast iron pump body
※ plastic impeller
※ protection IP44
※ insulation class F or H
※ ceramic shaft
※ ceramic bearing. graphite thrust bearing
