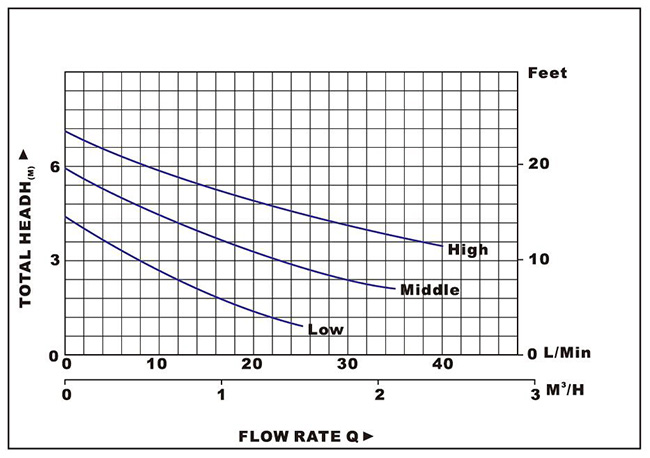

PERFORMANCE RANGE
※ flow rate up to 65 l/min
※ head up to 7 m

OPERATING LIMITS
※ fluid temperature: -10℃~~+110℃
※ maximum ambient temperature 40℃
※ maximum working pressure 1Mpa

STRUCTURAL CHARACTERISTICS
※ Non-overloading 1-phase motor
※ terminal box optionally in 3, 6, 9 or12 O'clock
※ manual 3-speed control
※ cast iron pump body（length of pump body can be 130mm or
180mmm）
※ plastic impeller (stainless steel impeller available on request)
※ protection IP44
※ insulation class F
※ ceramic shaft
※ ceramic bearing
