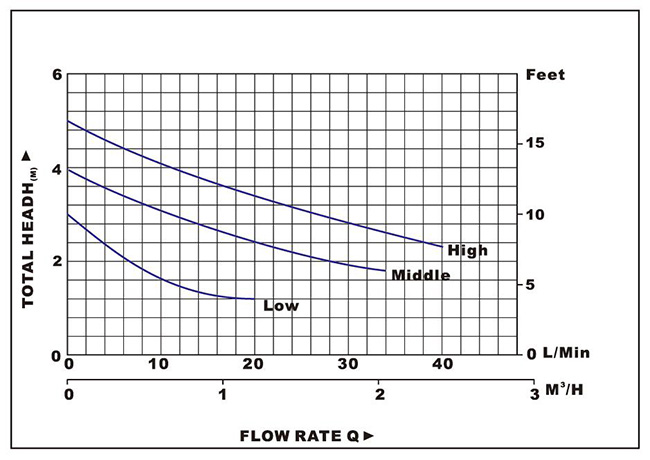

PERFORMANCE RANGE
¡ù flow rate up to 45 l/min
¡ù head up to 5 m
OPERATING LIMITS
¡ù fluid temperature: -10¡æ~~+110¡æ
¡ù maximum ambient temperature 40¡æ
¡ù maximum working pressure 1Mpa
STRUCTURAL CHARACTERISTICS
¡ù Non-overloading 1-phase motor
¡ù terminal box optionally in 3, 6, 9 or12 O'clock
¡ù manual 3-speed control
¡ù cast iron pump body£¨length of pump body can be 130mm or
180mmm£©
¡ù plastic impeller (stainless steel impeller available on request)
¡ù protection IP44
¡ù insulation class F
¡ù ceramic shaft
¡ù ceramic bearing
|
