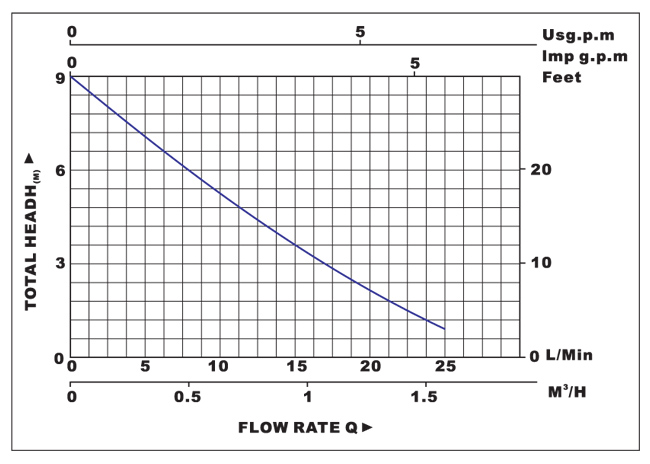

PERFORMANCE RANGE
¡ù flow rate up to 25 l/min
¡ù head up to 9 m
OPERATING LIMITS
¡ù fluid temperature: -10¡æ~~+80¡æ
¡ù maximum ambient temperature 40¡æ
¡ù maximum working pressure 1Mpa
STRUCTURAL CHARACTERISTICS
¡ù non-overloading 1-phase motor
¡ù with automatic flow switch
¡ù cast iron pump body
¡ù plastic impeller
¡ù protection IP44
¡ù insulation class F
¡ù ceramic shaft
¡ù ceramic bearing
|
