PERFORMANCE RANGE
¡ù flow rate up to 25 l/min
¡ù head up to 12 m
OPERATING LIMITS
¡ù fluid temperature: 2¡æ~~+60¡æ
¡ù maximum ambient temperature 40¡æ
¡ù maximum working pressure 1Mpa
STRUCTURAL CHARACTERISTICS
¡ù with thermal overload protecter in single phase motor
¡ù with automatic flow switch
¡ù brass pump casing

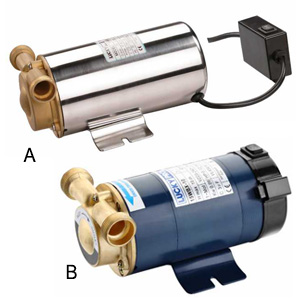

¡ù A type with stainless steel motor shell
¡ù B type with steel motor shell
¡ù brass impeller
¡ù protection IP44
¡ù insulation class B
¡ù stainless steel shaft (AISI420)
¡ù stainless steel mechanical seal (graphite to ceramic)
|
