PUMPS INSTALLATION AND APPLICATIONS
These pumps are suitable to handling clean water which are not chemically aggressive to the pump components and charged with small solid impurities.
They are extremely reliable, simple to use , quite and virtually maintence-free, finding many uses in flow irrigation systems with high flow rates , in gardening and agriculture and in industrial fittings.

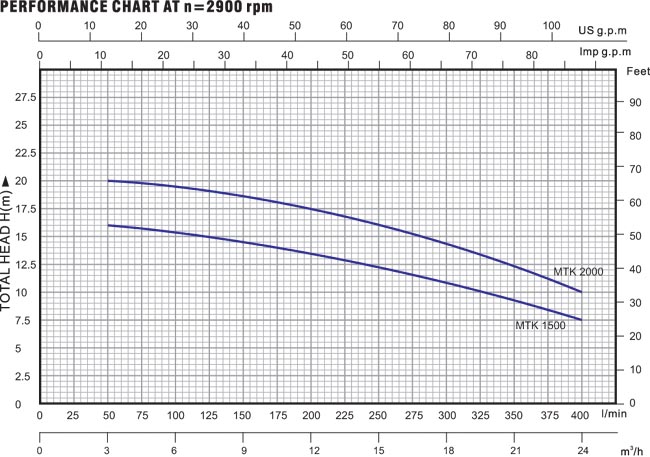

PERFORMANCE
¡ù middle head and big flow
¡ù highly stable and broad characteristic curves
¡ù good suction capacities at both low and high delivery rates

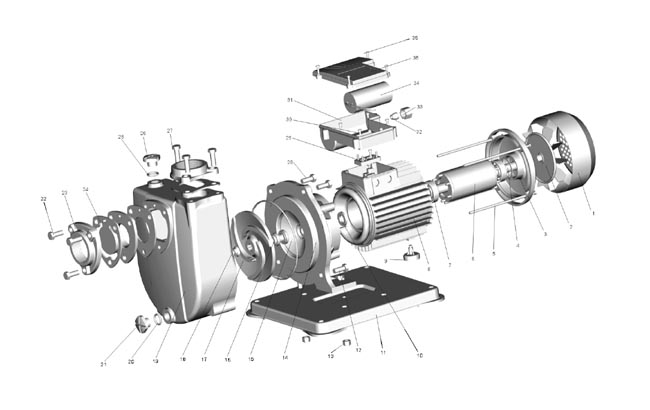

STRUCTURE CHARACTERISTICS
¡ù cast iron pump body
¡ù stainless steel mechanical seal (graphite to ceramic)
¡ù cast iron open impeller
¡ù stainless steel shaft
¡ù protection IP44
¡ù with thermal overload protector
¡ù NSK bearing or local bearing

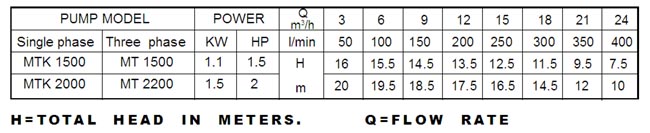

FLOW RATE Q
|
