PUMPS INSTALLATION AND
APPLICATIONS
They are recommended for pumping clean water without abrassive
particles and liquid are chemically non-aggressive to the materials of which the pump is made.
They are suitable for domestic use and in particular for delivering
water in combination smallautomatic pressure sets,as well as for irrigation
The pumps shall be installed in enclosed places, or at least protected against inclement.
STRUCTURAL CHARACTERISTICS
¡ù Pump body: Aluminum
¡ù Impeller: Aluminum and POM
¡ù
Motor Shaft: Stainless steel
¡ù Mechnical Seal: Ceramic-graphite
¡ù Insulation: Call F
¡ù Protection IP44
WARRANTY:1 YEAR(according to our general sales
conditions)

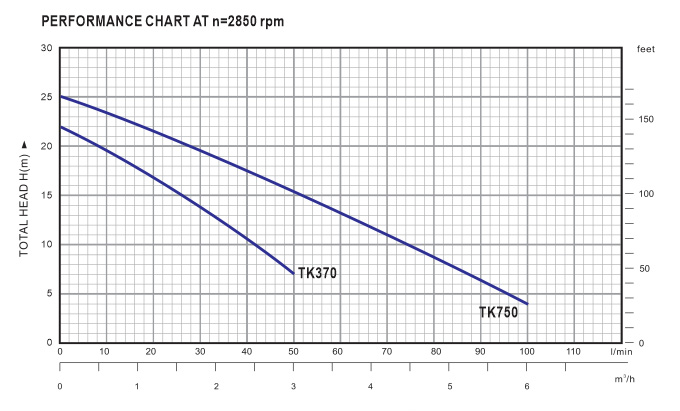

FLOW RATE Q
PUMP MODEL |
POWER |
Q
m3/h |
0 |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
6 |
Single phase |
KW |
HP |
l/min |
0 |
17 |
25 |
33 |
42 |
50 |
67 |
100 |
| TK370 |
370 |
0.5 |
H |
22 |
20 |
18 |
15 |
11 |
6 |
|
|
| TK750 |
750 |
1.0 |
25 |
23 |
21.5 |
18 |
15 |
11 |
7 |
3 |
H=TOTAL
HEAD IN METERS. Q=FLOW RATE |
