PUMPS INSTALLATION AND
APPLICATIONS
These pumps are suitable for handling
clean water which are not chemically aggressive to the pump
components.
They are extremely reliable,simple to use,
quiet and virtually maintence-free, finding many uses in
domestic and civil applications,and in particular the
automatic distribution of water from small and medium-sized
surge tanks, transferring water,watering gardens,etc.
PERFORMANCE
¡ù ample and stable
characteristic curves;
¡ù outputs having good absolute
values and tendencially flat curves;
¡ù flat absorption
curves at high delivery rates,preventing motor overloading
even during prolonged use;
¡ù good suction capacities both
at low and high delivery rates.
STRUCTURAL CHARACTERISTICS
¡ù cast iron
pump body
¡ù stainless steel pump body cover
¡ù
stainless steel mechanical seal (graphite to ceramic or
graphite to SiC)
¡ù brass impeller with centrifugal radial
flow type
¡ù stainless steel shaft(Hi-Cr plated 45# steel
shaft up to 0.75kw)
¡ù protection IP44
¡ù with thermal
overload protector in single phase motor
¡ù NSK bearing or
local bearing
WARRANTY:1 YEAR(according to our general sales
conditions)

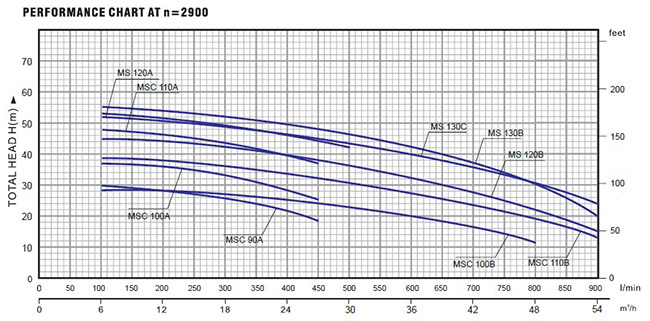

FLOW RATE Q
PUMP MODEL |
POWER |
Q
m3/h |
0 |
6 |
9 |
12 |
15 |
18 |
24 |
27 |
30 |
36 |
42 |
48 |
54 |
Single phase |
Three phase |
KW |
HP |
l/min |
0 |
100 |
150 |
200 |
250 |
300 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
MSC 90A
|
MS 90A |
2.2 |
3 |
H
M
|
31 |
30 |
29.5 |
28.5 |
27.5 |
26 |
21.5 |
18.5 |
|
|
|
|
|
MSC 100A |
MS 100A |
3 |
4 |
38 |
37.5 |
37 |
36 |
34.5 |
33 |
28.5 |
25.5 |
|
|
|
|
|
MSC 110A |
MS 110A |
4 |
5.5 |
49 |
48 |
47 |
46 |
45 |
43.5 |
39.5 |
37 |
|
|
|
|
|
¡ª¡ª |
MS 120A |
5.5 |
7.5 |
54 |
52.5 |
52 |
51 |
50 |
49 |
46 |
44 |
42 |
|
|
|
|
MSC 100B |
MS 100B |
3 |
4 |
30 |
29.5 |
29 |
28.5 |
28 |
27 |
25 |
23.5 |
22 |
19.5 |
15.5 |
11.5 |
|
MSC 110B |
MS 110B |
4 |
5.5 |
39 |
38.5 |
38 |
37.5 |
37 |
36 |
34 |
32.5 |
31 |
28 |
24 |
18.5 |
13 |
¡ª¡ª |
MS 120B |
5.5 |
7.5 |
46.5 |
45.5 |
45 |
44.5 |
43.5 |
42.5 |
40 |
38.5 |
37 |
33 |
28 |
22 |
15 |
¡ª¡ª |
MS 130B |
7.5 |
10 |
56.5 |
55 |
55 |
54.5 |
53.5 |
52.5 |
50 |
48.5 |
46.5 |
42 |
36.5 |
30.5 |
20 |
¡ª¡ª |
MS 130C |
7.5 |
10 |
52.5 |
52 |
52 |
51.5 |
51 |
50.5 |
48 |
46.5 |
44.5 |
40 |
35.5 |
30.5 |
24 |
H=TOTAL
HEAD IN METERS. Q=FLOW RATE
|
