       Centrifugal Pump

CENTRIFUGAL PUMPS WITH OPEN IMPELLER
PERFORMANCE RANGE
¡ù flow rate up to 250 I/min.(15m3/h)
¡ù head up to 20 m

OPERATING LIMITS
¡ù suction lift up to 7 m
¡ù fluid temperature up to 60¡æ
¡ù maximum ambient temperature 40¡æ

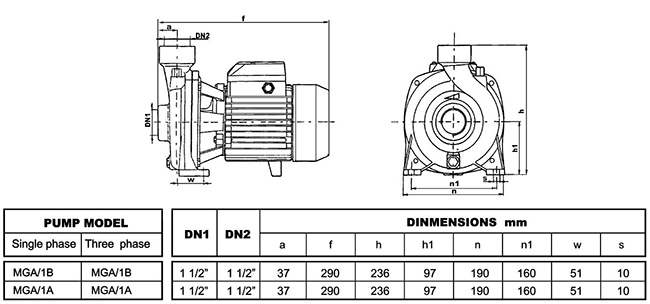

MGA/1A


N.

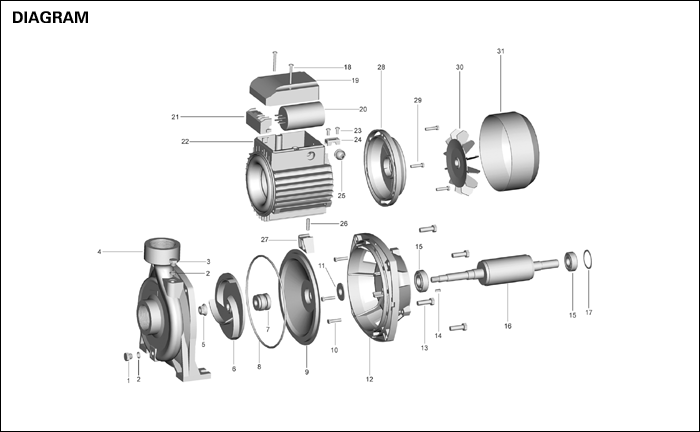

DESCRIPTION
N.
DESCRIPTION
N.
DESCRIPTION
1
 Discharge pulg
13
 Bolt
25
 Fairlead
2
 "O" ring
14
 Key
26
 Stand pin
3
 Charge plug
15
 Bearing
27
 Stand
4
 Pump casing
16
 Rotor
28
 Driving cap
5
 Nut
17
 Split ring
29
 Bolt
6
 Impeller
18
 Bolt
30
 Fan
7
 Mechanical seal
19
 Terminal cover
31
 Fan cover
8
 "O" ring
20
 Capacitor
9
 Pump casing cover
21
 Terminal board
10
 Bolt
22
 Casing with wound stator
11
 Drops guard
23
 Screw
12
 Pump support
24
 Cable presser
PUMPS INSTALLATION AND APPLICATIONS
MGA pumps are recommended for pumping water and fluids which are not chemically aggressive to the pump components.The open impeller design enables fairly large amounts of impurities to be pumped without danger of clogging.
MGA pumps are very dependable, simple to use, and virtually maintenance-free. They suit a wide range of industrial applications, watering gardens and transferring water from canals, rivers, tanks, tubs, etc.
These pumps should be installed in a covered area,protected against the weather.

PERFORMANCE
Special attention was given,when designing performance levels for the MGA range,to typical requirements for pumps having to perform the functions described above.
The result is a series of pumps characterized by:
¡ù especially wide and flat characteristic curves,making it possible to handle large quantities of water;
¡ù efficiencies with high absolute values over much of the characteristic curve(efficiency curves that tend to be flat);
¡ù flat adsorption curves at high delivery rates,to prevent motor overloading even during prolonged use at high rates.

STRUCTURAL CHARACTERISTICS
¡ù cast iron pump body
¡ù stainless steel pump body cover
¡ù stainless steel mechanical seal(graphite to ceramic)
¡ù brass impeller with open type
¡ù Hi-Cr plated 45# steel shaft
¡ù protection IP44
¡ù with thermal overload protector in single phase motor
¡ù NSK bearing or local bearing

WARRANTY:1 YEAR(according to our general sales conditions)

FLOW RATE Q

PUMP MODEL
POWER
Q
m3/h
0
3.0
4.5
6.5
7.5
9.0
10.5
12.0
13.5
15.0
Single phase
Three phase
KW
HP
l/min
 0 50 75 100 125 150 175 200 225 250
MGA/1B MG/1B 0.60 0.80
H
M
 16 16 15.5 15 14.2 13 12 10.5 8.5 6
MGA/1A MG/1A 0.75 1 20 20 19.5 19 18 16.7 15.2 13.5 11.5 9

H=TOTAL HEAD IN METERS. Q=FLOW RATE
