       Centrifugal Pump

CENTRIFUGAL PUMPS
PERFORMANCE RANGE
¡ù flow rate up to 220 I/min.(13.2m3/h)
¡ù head up to 38 m

OPERATING LIMITS
¡ù suction lift up to 7 m
¡ù fluid temperature up to 60¡æ
¡ù maximum ambient temperature 40¡æ


MCP25/160A


N.
DESCRIPTION
N.
DESCRIPTION
N.
DESCRIPTION

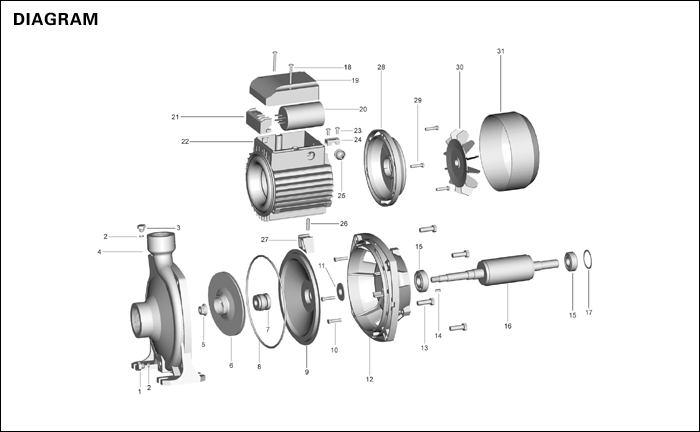

1
 Discharge pulg
13
 Bolt
25
 Fairlead
2
 "O" ring
14
 Key
26
 Stand pin
3
 Charge plug
15
 Bearing
27
 Stand
4
 Pump casing
16
 Rotor
28
 Driving cap
5
 Nut
17
 Split ring
29
 Bolt
6
 Impeller
18
 Bolt
30
 Fan
7
 Mechanical seal
19
Terminal cover
31
 Fan cover
8
 "O" ring
20
 Capacitor
9
 Pump casing cover
21
 Terminal board
10
 Bolt
22
 Casing with wound stator
11
 Drops guard
23
 Screw
12
 Pump support
24
 Cable presser
PUMPS INSTALLATION AND APPLICATIONS
These pumps are suitable for handling clean water which are not chemically aggressive to the pump components.
They are extremely reliable,simple to use, quiet and virtually maintence-free, finding many uses in domestic and civil applications,and in particular the automatic distribution of water from small and medium-sized surge tanks, transferring water,watering gardens,etc.

PERFORMANCE
¡ù ample and stable characteristic curves;
¡ù outputs having good absolute values and tendencially flat curves;
¡ù flat absorption curves at high delivery rates,preventing motor overloading even during prolonged use;
¡ù good suction capacities both at low and high delivery rates.

STRUCTURAL CHARACTERISTICS
¡ù cast iron pump body
¡ù stainless steel pump body cover
¡ù stainless steel mechanical seal (graphite to SiC)
¡ù brass impeller with centrifugal radial flow type
¡ù stainless steel shaft
¡ù protection IP44
¡ù with thermal overload protector in single phase motor
¡ù NSK bearing or local bearing

WARRANTY:1 YEAR(according to our general sales conditions)

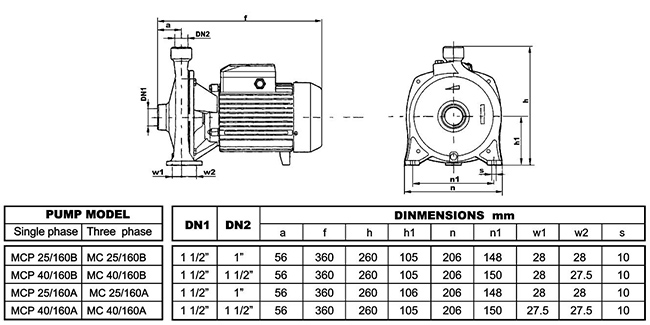

FLOW RATE Q

PUMP MODEL
POWER
Q
m3/h
0
3.0
3.6
4.2
4.8
5.4
6.0
6.6
7.5
8.4
9.6
10.8
12.0
13.2
Single phase
Three phase
KW
HP
l/min
0 50 60 70 80 90 100 110 125 140 160 180 200 220
MCP25/160B MC25/160B 1.1 1.5
H
M
 33 32.5 32 31.5 31 30.5 30 29 28 26.5 24 21.5 18
MCP40/160B MC40/160B 1.1 1.5  33 32.5 32 31.5 31 30.5 30 29 28 26.5 24 21.5 18
MCP25/160A MC25/160A 1.5 2 38 37 36.8 36.5 36 35.5 35 34 33 32 29.5 27.5 24 20
MCP40/160A MC40/160A 1.5 2 38 37 36.8 36.5 36 35.5 35 34 33 32 29.5 27.5 24 20

H=TOTAL HEAD IN METERS. Q=FLOW RATE
