PUMPS INSTALLATION AND APPLICATIONS
These pumps
are suitable for handling clean water which are not chemically
aggressive to the pump components.
They are extremely
reliable,simple to use, quiet and virtually maintence-free,
finding many uses in domestic and civil applications,and in
particular the automatic distribution of water from small and
medium-sized surge tanks, transferring water,watering
gardens,etc.

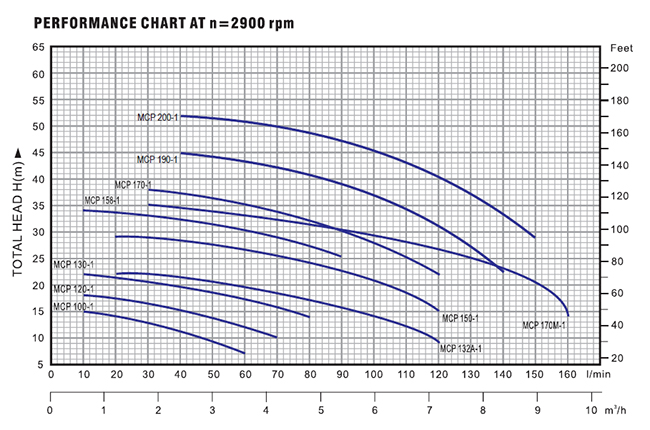

PERFORMANCE
¡ù ample and stable characteristic
curves;
¡ù outputs having good absolute values and
tendencially flat curves;
¡ù flat absorption curves at high
delivery rates,preventing motor overloading even during
prolonged use;
¡ù good suction capacities both at low and
high delivery rates.

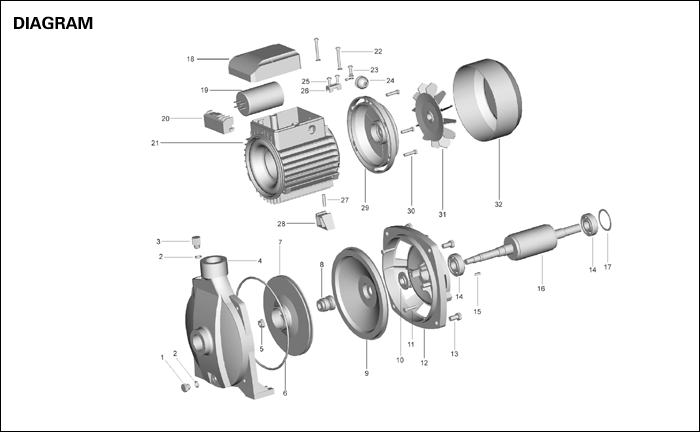

STRUCTURAL CHARACTERISTICS
¡ù cast iron pump
body
¡ù stainless steel pump body cover
¡ù stainless steel
mechanical seal (graphite to ceramic or graphite to SiC)
¡ù
brass impeller with centrifugal radial flow type
¡ù
stainless steel shaft (Hi-Cr plated 45# steel up to
0.75kw)
¡ù protection IP44
¡ù with thermal overload
protector in single phase motor
¡ù NSK bearing or local
bearing
WARRANTY:1 YEAR(according to our general
sales conditions)
FLOW RATE Q
PUMP MODEL |
POWER |
Q
m3/h |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3.0 |
3.6 |
4.2 |
4.8 |
5.4 |
6.0 |
6.6 |
7.2 |
7.8 |
8.4 |
9.0 |
9.6 |
Single phase |
Three phase |
KW |
HP |
l/min |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
130 |
140 |
150 |
160 |
MCP 100-1 |
MC 100-1 |
0.25 |
0.33 |
H
M |
16 |
15 |
14 |
12.5 |
11 |
9 |
7 |
|
|
|
¡¡ |
|
|
|
|
|
|
MCP 120-1 |
MC 120-1 |
0.30 |
0.40 |
19 |
18 |
17.5 |
16.5 |
15.5 |
14 |
12 |
10 |
|
|
¡¡ |
|
|
|
|
|
|
MCP 130-1 |
MC 130-1 |
0.37 |
0.50 |
23 |
22 |
21 |
20 |
19 |
18 |
17 |
16 |
14 |
|
¡¡ |
|
|
|
|
|
|
MCP 132A-1 |
MC 132A-1 |
0.60 |
0.80 |
23 |
- |
22 |
21.5 |
21 |
20 |
19 |
18 |
17 |
16 |
14 |
12 |
9 |
|
|
|
|
MCP 150-1 |
MC 150-1 |
0.75 |
1 |
29.5 |
- |
29 |
28.5 |
28 |
27.5 |
26.5 |
26 |
24.5 |
23 |
21 |
18 |
15 |
|
|
|
|
MCP 158-1 |
MC 158-1 |
0.75 |
1 |
36 |
34 |
33.5 |
33 |
32.5 |
31.5 |
30 |
29 |
27 |
25 |
¡¡ |
|
|
|
|
|
|
MCP 170-1 |
MC 170-1 |
1.1 |
1.5 |
41 |
- |
- |
38 |
37 |
36 |
35 |
33.5 |
32 |
30 |
28 |
25 |
22 |
|
|
|
|
MCP 170M-1 |
MC 170M-1 |
1.1 |
1.5 |
36 |
- |
- |
35 |
34.5 |
33.5 |
33 |
32 |
31 |
30.5 |
29 |
28 |
26.5 |
25 |
23 |
21 |
19 |
MCP 190-1 |
MC 190-1 |
1.5 |
2 |
|
48 |
- |
- |
45.5 |
44.5 |
43.5 |
42.5 |
41.5 |
40.5 |
39 |
37 |
34.5 |
31 |
27 |
22 |
|
|
MCP 200-1 |
MC 200-1 |
2.2 |
3 |
55 |
- |
- |
53 |
52.5 |
51.5 |
50.5 |
49.5 |
48.5 |
47 |
45.5 |
43.5 |
40 |
36.5 |
32.5 |
28 |
|

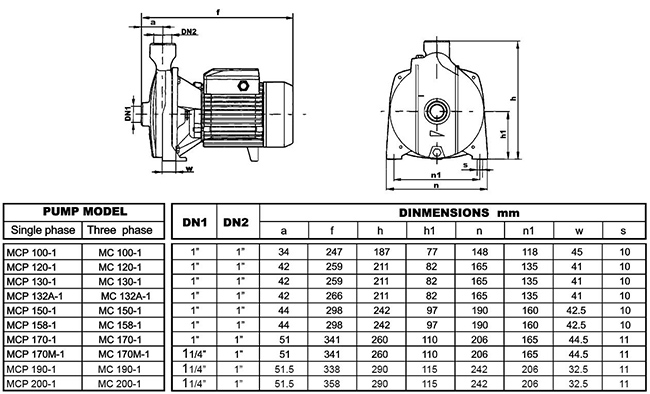

H=TOTAL
HEAD IN METERS. Q=FLOW RATE
 |
